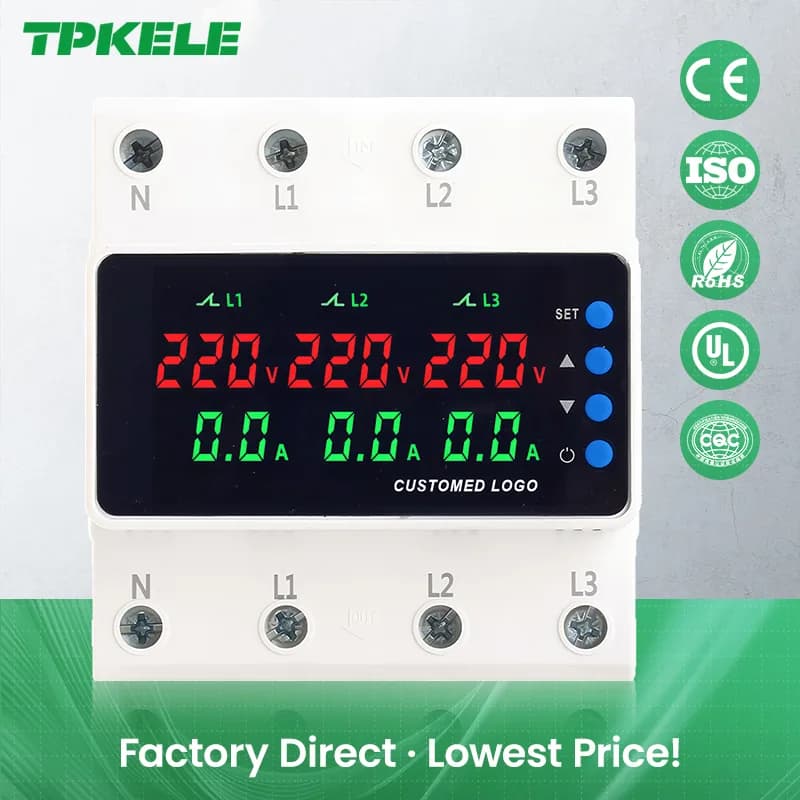

STATS-06 Voltage Protector
TPKELE STATS-06 is a 3-phase 4-wire (AC 380V) over/under voltage and over-current protector with real-time 3-phase voltage and current display. It detects phase loss, open neutral, phase sequence and 3-phase unbalance — built for photovoltaic energy storage, industrial motor panels, commercial HVAC and general 3-phase equipment protection.
Key Features
- 3-phase 4-wire AC 380V protection
- Over/under voltage, over-current, phase loss, open neutral, phase sequence, unbalance
- Real-time 3-phase voltage & current display
- Adjustable thresholds with recovery ranges
- 35mm DIN-rail mounting
Need full datasheet, drawing or certificates for tender?
Typical Applications
Technical Specifications
| Product Model | STATS-06 |
|---|---|
| Product Type | 3-Phase 4-Wire Over/Under Voltage & Over-Current Protector |
| Rated Voltage | AC 380V (N-L1/L2/L3) |
| Rated Frequency | 40 / 50 / 60Hz |
| Rated Current Options | 63A / 100A |
| Over-Voltage Protection Range | AC 230–300V (Default: 270V) |
| Over-Voltage Recovery Range | AC 225–295V (Default: 265V) |
| Under-Voltage Protection Range | AC 120–210V (Default: 170V) |
| Under-Voltage Recovery Range | AC 125–215V (Default: 175V) |
| Over-Current Protection Range | 1–63A / 1–100A (Default: 63A) |
| Over-Current Action Time | 0.1s–10s (Default: 0.5s) |
| Continuous Over-Current Protection Times | 0–20 Times (Default: OFF) |
| Power-On Delay Time | 1–600s (Default: 5s) |
| Protection Recovery Delay Time | 1–600s (Default: 30s) |
| Display Function | Real-Time 3-Phase Voltage & Current Display (Current Not Displayed Below 1A) |
| Core Protection Functions | Over/Under Voltage, Over-Current, Phase Loss, Open Neutral, Phase Sequence, 3-Phase Unbalance |
| Calibration Function | 3-Phase Voltage & Current Calibration |
| Installation | 35mm DIN Rail Mounting |
| Housing Color Options | White / Dark Gray |
| Application | Photovoltaic Energy Storage, Industrial Motor Distribution Panels, Commercial HVAC Power Supply, 3-Phase Equipment Protection |
| Warranty | 3 Years |
Certifications & Standards
Verified to international standards for global tenders
OEM / ODM Available
Private label this Voltage Protector for your brand
Logo, color housing, packaging and certificate documentation tailored to distributor and brand-owner programs.
- Custom logo printing on housing and packaging
- Color housing variants for product line differentiation
- Private-label catalogs and datasheet customization
- Project-spec drawings, single-line diagrams and labels
- Container-load supply with export documentation
- Sample preparation within 5–10 working days
Frequently Asked Questions
When should I install a voltage protector?
Voltage protectors are recommended where mains supply is unstable or where sensitive appliances such as refrigerators, air conditioners and electronics need protection from voltage fluctuations and phase-loss events.
Does the voltage protector reset automatically?
Yes — after the mains voltage returns to a safe range, the protector reconnects the load automatically after a configurable delay (typically 5–600s).
Do you have three-phase models with phase-loss protection?
Yes, our three-phase voltage protectors detect over/under voltage on each phase, plus phase loss and phase sequence errors.
