Energy Meter
Energy Meter

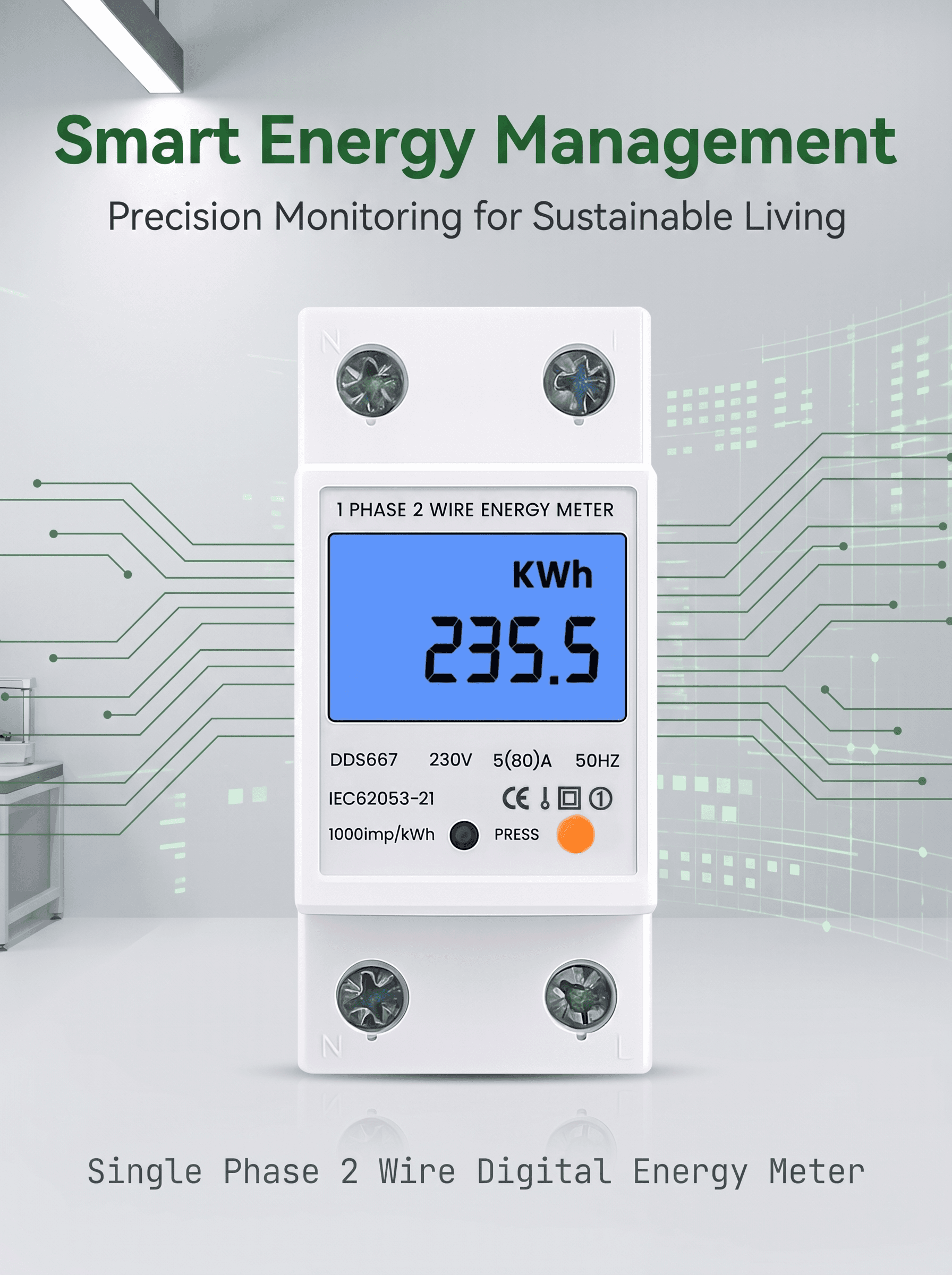

TPKELE DIN rail energy meters provide compact metering options for distribution panels and energy management projects.
Key Features
- Single-phase and three-phase options
- Clear digital display
- Communication model available
- Class 1 active energy accuracy
- Pulse output and RS485 Modbus options for monitoring
Need full datasheet, drawing or certificates for tender?
Typical Applications
Technical Specifications
| Phase | Single phase / Three phase |
|---|---|
| Rated Voltage | 230V / 400V AC |
| Rated Current | 5(80)A direct / CT operated |
| Accuracy Class | Class 1 (active energy) |
| Display | LCD digital display |
| Communication | Pulse output / RS485 Modbus (optional) |

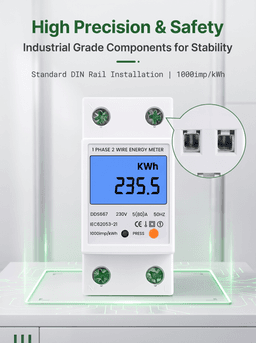

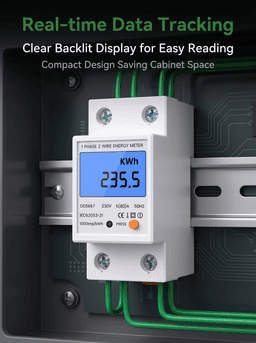

| Mounting | DIN-rail 35mm |
| Certification | CE, IEC 62052/62053 |
Certifications & Standards
Verified to international standards for global tenders
OEM / ODM Available
Private label this Energy Meter for your brand
Logo, color housing, packaging and certificate documentation tailored to distributor and brand-owner programs.
- Custom logo printing on housing and packaging
- Color housing variants for product line differentiation
- Private-label catalogs and datasheet customization
- Project-spec drawings, single-line diagrams and labels
- Container-load supply with export documentation
- Sample preparation within 5–10 working days
Frequently Asked Questions
Do you support Modbus communication?
Yes — RS485 Modbus output is available on selected models for integration with energy management, BMS and SCADA systems.
What accuracy class do the meters offer?
Standard meters meet Class 1 active energy accuracy per IEC 62053-21, suitable for sub-metering and operational monitoring. Higher accuracy available on request.
Direct connect vs CT operated — which do I need?
Direct-connect meters wire the load current directly through the meter, suitable up to 80A or 100A. CT-operated meters use external current transformers for higher currents (typically 100A and above).
Are the meters MID approved?
Standard models are CE / IEC certified. MID-approved versions for billing applications in the EU are available on request.
