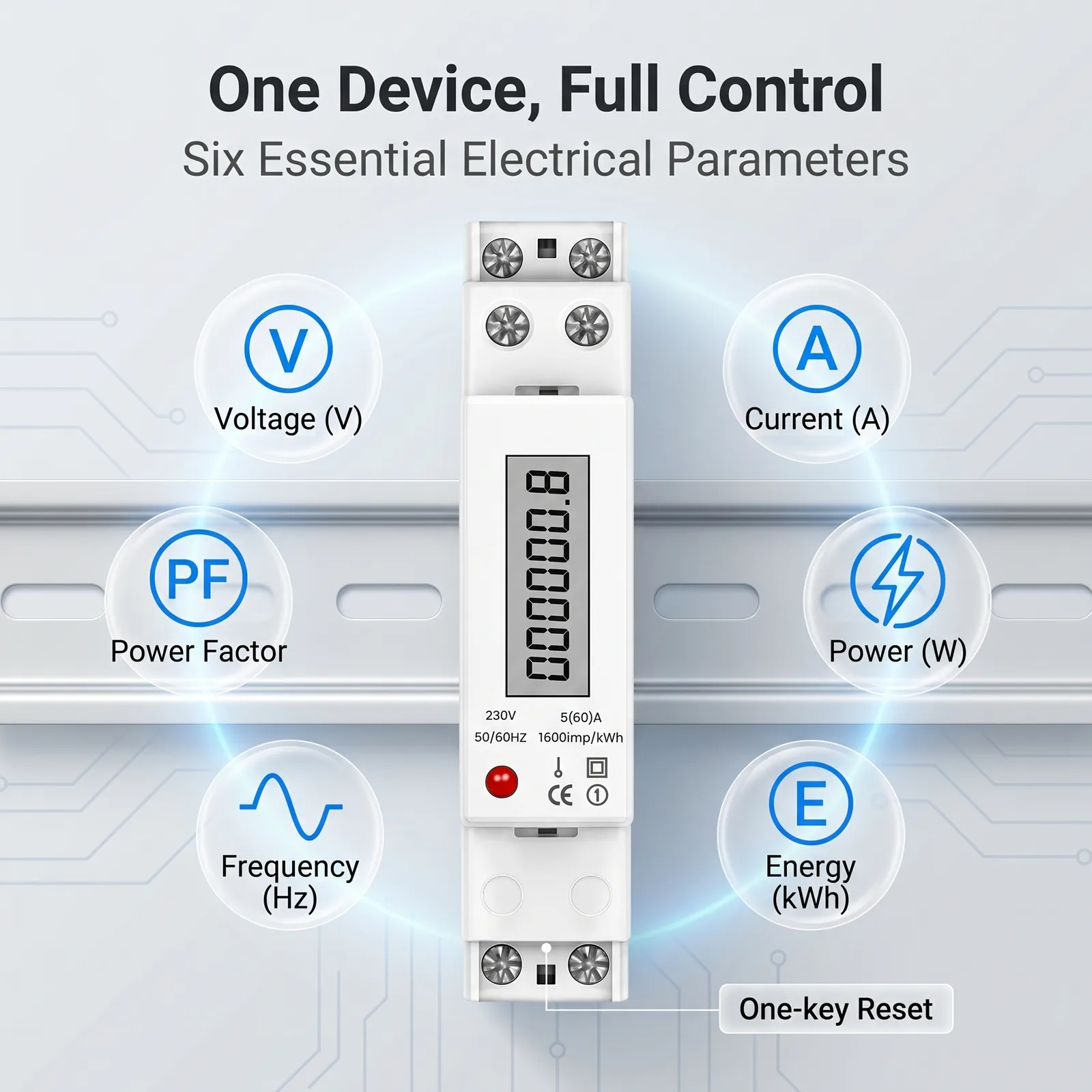

ADD Single Phase DIN Rail Energy Meter
The TPKELE ADD single-phase DIN rail energy meter is a slim 18mm modular meter for single-phase energy metering and power consumption monitoring. Rated 230V AC, 5(60)A with a 1600 imp/kWh pulse constant, it mounts on standard 35mm DIN rail and fits standard modular panels and distribution boxes. A digital LCD numeric display is available in multiple face styles (black / gray / blue), making it a universally compatible, standard-size metering module for residential and commercial distribution boards.
Key Features
- Slim 18mm single-module body
- 230V AC, 5(60)A, 50/60Hz
- 1600 imp/kWh pulse constant
- Digital LCD display, multiple face styles
- Class 1 active energy accuracy
Need full datasheet, drawing or certificates for tender?
Typical Applications
Technical Specifications
| Product Type | Single Phase DIN Rail Energy Meter |
|---|---|
| Rated Voltage | 230V AC |
| Current Rating | 5(60)A (base current 5A, max current 60A) |
| Frequency | 50/60Hz |
| Pulse Constant | 1600 imp/kWh |
| Display Type | Digital LCD / numeric display (black / gray / blue face styles) |
| Mounting Method | 35mm DIN rail mounting |
| Meter Width | 18mm (slim single-module body) |
| Meter Height | 91mm |
| Meter Depth | 50mm |
| Body / Side Height | 46mm |
| Compatibility | Standard modular panel / distribution box installation |
| Application | Single-phase energy metering and power consumption monitoring, indoor panel use |
Certifications & Standards
Verified to international standards for global tenders
OEM / ODM Available
Private label this Energy Meter for your brand
Logo, color housing, packaging and certificate documentation tailored to distributor and brand-owner programs.
- Custom logo printing on housing and packaging
- Color housing variants for product line differentiation
- Private-label catalogs and datasheet customization
- Project-spec drawings, single-line diagrams and labels
- Container-load supply with export documentation
- Sample preparation within 5–10 working days
Frequently Asked Questions
Do you support Modbus communication?
Yes — RS485 Modbus output is available on selected models for integration with energy management, BMS and SCADA systems.
What accuracy class do the meters offer?
Standard meters meet Class 1 active energy accuracy per IEC 62053-21, suitable for sub-metering and operational monitoring. Higher accuracy available on request.
Direct connect vs CT operated — which do I need?
Direct-connect meters wire the load current directly through the meter, suitable up to 80A or 100A. CT-operated meters use external current transformers for higher currents (typically 100A and above).
Are the meters MID approved?
Standard models are CE / IEC certified. MID-approved versions for billing applications in the EU are available on request.
