Combiner Box

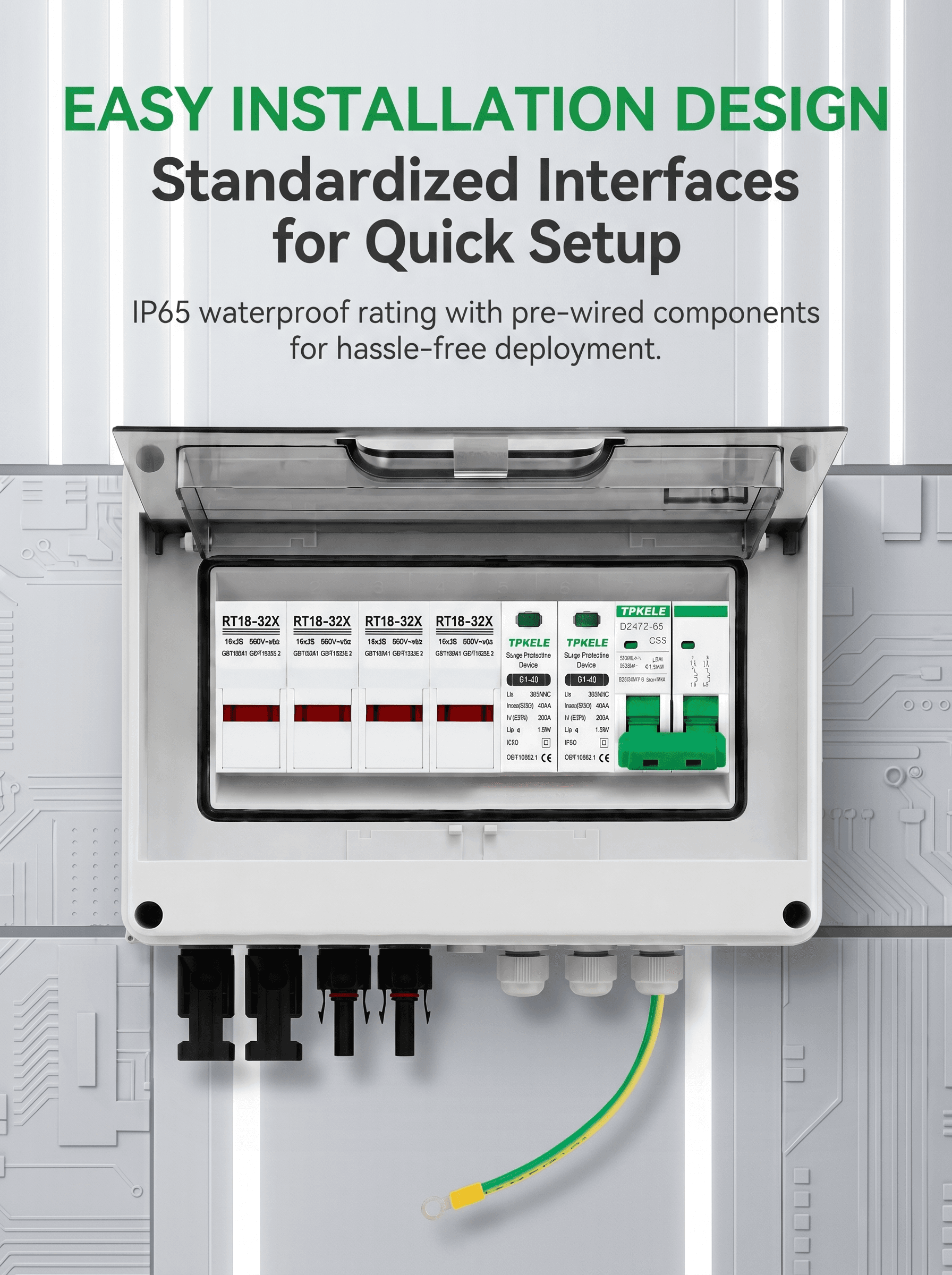

Plastic Box Series

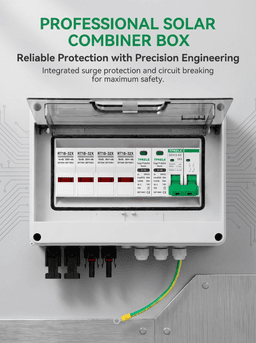

TPKELE plastic combiner box series supports lightweight PV protection assemblies with configurable branch and protection layouts.
Key Features
- Plastic enclosure series
- Custom strings and enclosure size
- SPD, fuse and breaker configuration
- IP65 weather-rated enclosure for outdoor PV sites

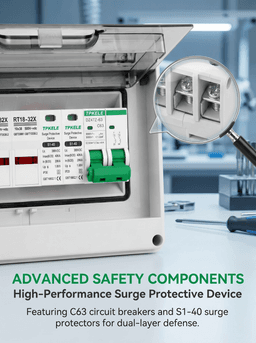

- Pre-assembled with DC SPD, DC fuse and DC breaker
Need full datasheet, drawing or certificates for tender?
Typical Applications
Technical Specifications
| Enclosure | Plastic / Metal |
|---|---|
| Protection Rating | IP65 |
| Inputs | 2 / 4 / 6 / 8 / 12 / 16 strings |
| Max DC Voltage | 1000V / 1500V DC |
| Internal Components | DC fuse, DC SPD, DC breaker |
| Operating Temperature | -25°C to +60°C |
| Mounting | Wall mount |
| Certification | CE, IEC 61439 |
Certifications & Standards
Verified to international standards for global tenders
OEM / ODM Available
Private label this Combiner Box for your brand
Logo, color housing, packaging and certificate documentation tailored to distributor and brand-owner programs.
- Custom logo printing on housing and packaging
- Color housing variants for product line differentiation
- Private-label catalogs and datasheet customization
- Project-spec drawings, single-line diagrams and labels
- Container-load supply with export documentation
- Sample preparation within 5–10 working days
Frequently Asked Questions
Plastic or metal PV combiner box — which should I choose?
Plastic boxes are lighter, fully corrosion-resistant and ideal for residential and rooftop projects. Metal boxes provide greater mechanical strength, better heat dissipation and are common in utility-scale and harsh environments such as desert or coastal sites.
What system voltage do your combiner boxes support?
We offer both 1000V DC and 1500V DC versions. 1500V DC is now the standard for utility-scale PV due to lower BOS cost.
Do combiner boxes include SPD, fuse and breaker?
Yes — our standard combiner boxes are pre-assembled with DC fuses, DC SPDs and DC MCBs. The configuration is adjusted to match your project single-line diagram.
Do you provide drawings and BOMs for tender packs?
Yes — we provide CAD drawings, single-line diagrams and BOMs in formats suitable for EPC tender submissions and engineer review.
What is the standard IP rating?
Standard rating is IP65 for outdoor use. IP66 is available on request for harsh environments.
