Energy Meter
D52-2068 Smart Digital Meter

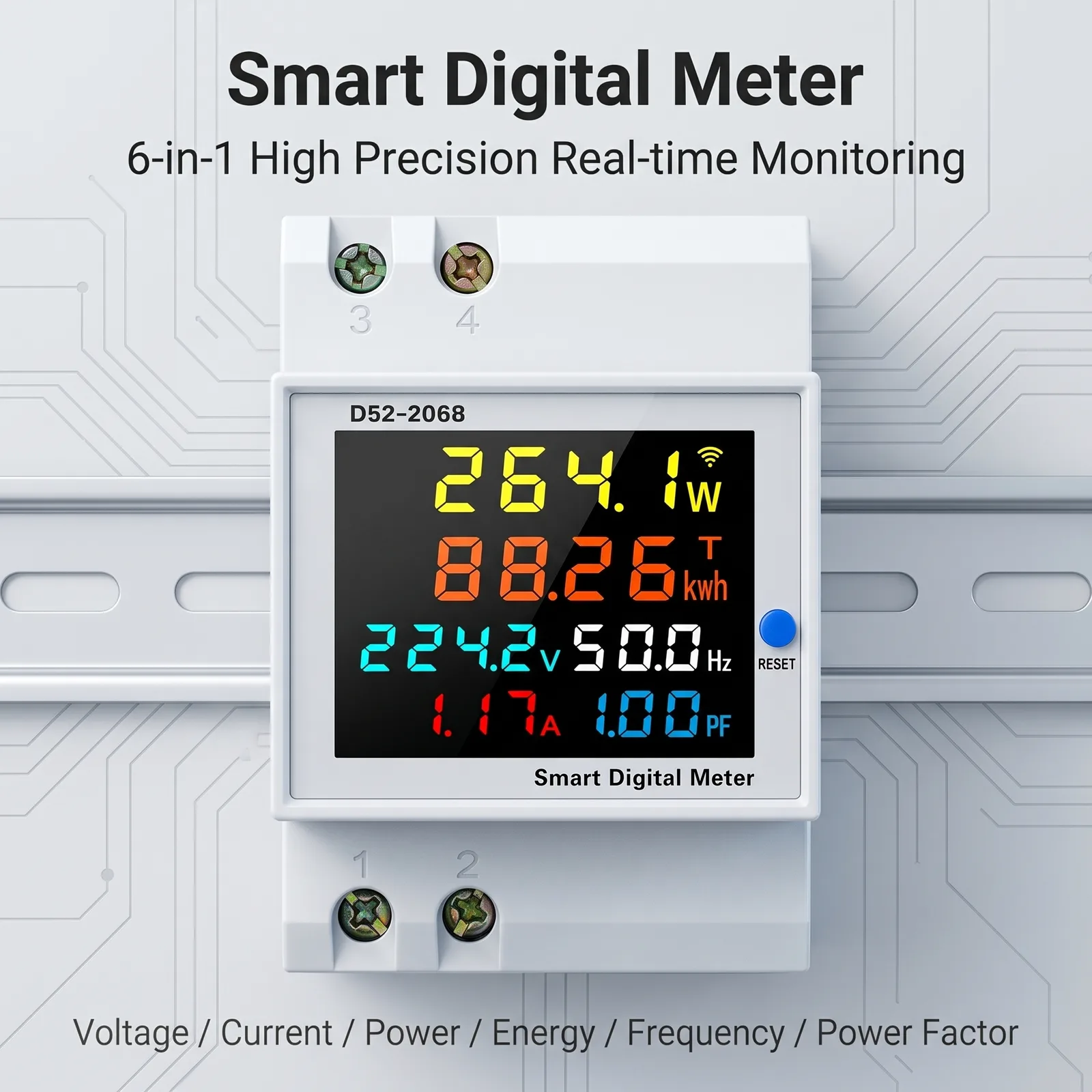

The TPKELE D52-2068 is a 6-in-1 DIN rail smart digital energy meter that displays voltage, current, active power, energy, frequency and power factor on a single multi-color screen. Designed for home distribution boxes, control cabinets and equipment power monitoring, it offers clear real-time readout of AC circuits. Note: this is a measurement and monitoring meter only — it does not provide overload or short-circuit protection.
Key Features
- 6-in-1 display: W, kWh, V, Hz, A, PF
- 35mm DIN rail mounting
- Multi-color digital display
- RESET button for setting / energy reset
- Class 1 active energy accuracy
Need full datasheet, drawing or certificates for tender?
Typical Applications
Technical Specifications
| Model | D52-2068 |
|---|---|
| Product Name | 6-in-1 DIN Rail Smart Digital Energy Meter |
| Main Functions | Voltage, Current, Active Power, Energy, Frequency, Power Factor |
| Displayed Values | W, kWh, V, Hz, A, PF |
| Rated / Measuring Voltage | AC 40–300V / AC 80–300V (typical range) |
| Current Measuring Range | 0–100A typical (built-in or external CT depending on version) |
| Active Power Range | 0–30,000W typical |
| Energy Range | 0–99,999kWh (cumulative active energy) |
| Frequency Range | 45–65Hz (50/60Hz AC systems) |
| Power Factor Range | 0.00–1.00 PF |
| Mounting Method | 35mm DIN Rail |
| Display Type | Multi-color digital display |
| Reset Function | RESET button (setting / energy reset by version) |
| Application | Home distribution box, control cabinet, energy monitoring, equipment power monitoring |
| Important Note | Meter only — not a circuit breaker; no overload or short-circuit protection |
Certifications & Standards
Verified to international standards for global tenders
OEM / ODM Available
Private label this Energy Meter for your brand
Logo, color housing, packaging and certificate documentation tailored to distributor and brand-owner programs.
- Custom logo printing on housing and packaging
- Color housing variants for product line differentiation
- Private-label catalogs and datasheet customization
- Project-spec drawings, single-line diagrams and labels
- Container-load supply with export documentation
- Sample preparation within 5–10 working days
Frequently Asked Questions
Do you support Modbus communication?
Yes — RS485 Modbus output is available on selected models for integration with energy management, BMS and SCADA systems.
What accuracy class do the meters offer?
Standard meters meet Class 1 active energy accuracy per IEC 62053-21, suitable for sub-metering and operational monitoring. Higher accuracy available on request.
Direct connect vs CT operated — which do I need?
Direct-connect meters wire the load current directly through the meter, suitable up to 80A or 100A. CT-operated meters use external current transformers for higher currents (typically 100A and above).
Are the meters MID approved?
Standard models are CE / IEC certified. MID-approved versions for billing applications in the EU are available on request.
