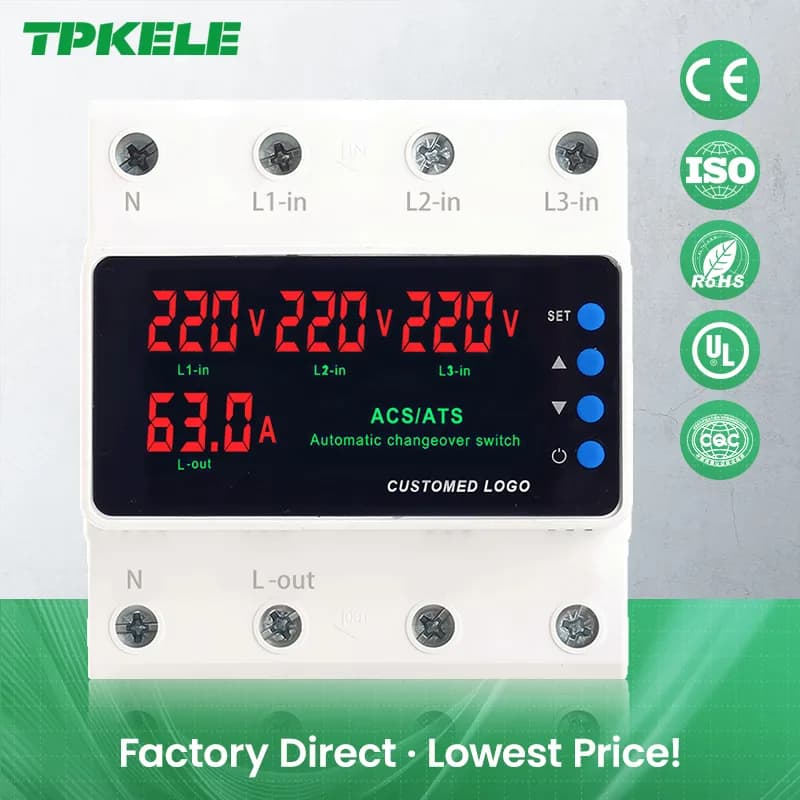

STATS-04 Voltage Protector
TPKELE STATS-04 is a 3-input automatic transfer switch that adds output current to the display, showing L1 / L2 / L3 input voltages plus load current on four parameters. With priority switching and over/under voltage and over-current protection, it suits generator sizing verification, panel commissioning and solar load monitoring.
Key Features
- 3-way priority switching (L1 → L2 → L3, customizable)
- 4-parameter display — 3× input voltage + output current
- Over / under voltage + over-current protection
- Switching response time < 0.2s
- 35mm DIN-rail mounting
Need full datasheet, drawing or certificates for tender?
Typical Applications
Technical Specifications
| Product Model | STATS-04 |
|---|---|
| Product Type | 3-Input Automatic Transfer Switch with Current Display |
| Rated Supply Voltage | AC 3×220V (N-L1/L2/L3) |
| Rated Frequency | 40 / 50 / 60 / 70Hz |
| Over-Voltage Protection Range | AC 130–300V |
| Under-Voltage Protection Range | AC 80–210V |
| Over-Current Protection Range | 1–63A / 1–80A / 1–100A (per rated model) |
| Rated Working Current | 63A / 80A / 100A (Optional) |
| Voltage Accuracy | <1% |
| Display Mode | 4-Parameter Display — L1/L2/L3 Input Voltage + Output Current |
| Priority Switching Sequence | L1 → L2 → L3 (Customizable) |
| Startup Delay Time | 1–600s (Adjustable) |
| Auto-Recovery Delay Time | 1–600s (Adjustable) |
| Switching Response Time | <0.2s |
| Installation | 35mm DIN Rail |
| Housing Material | Flame-Retardant PC (UL94 V-0) |
| Mechanical Life | ≥10,000 Cycles |
| Operating Temperature | -25°C to +50°C |
| Relative Humidity | ≤50% at 40°C (Non-Condensing) |
| Core Functions | 3-Way Priority Switching, Over/Under Voltage Protection, Over-Current Protection, Triple Voltage + Output Current Monitoring |
| Application | Generator Sizing Verification, Electrical Panel Commissioning, Rental Property Sub-metering, Solar Load Monitoring |
| Certification | CE, RoHS |
Certifications & Standards
Verified to international standards for global tenders
OEM / ODM Available
Private label this Voltage Protector for your brand
Logo, color housing, packaging and certificate documentation tailored to distributor and brand-owner programs.
- Custom logo printing on housing and packaging
- Color housing variants for product line differentiation
- Private-label catalogs and datasheet customization
- Project-spec drawings, single-line diagrams and labels
- Container-load supply with export documentation
- Sample preparation within 5–10 working days
Frequently Asked Questions
When should I install a voltage protector?
Voltage protectors are recommended where mains supply is unstable or where sensitive appliances such as refrigerators, air conditioners and electronics need protection from voltage fluctuations and phase-loss events.
Does the voltage protector reset automatically?
Yes — after the mains voltage returns to a safe range, the protector reconnects the load automatically after a configurable delay (typically 5–600s).
Do you have three-phase models with phase-loss protection?
Yes, our three-phase voltage protectors detect over/under voltage on each phase, plus phase loss and phase sequence errors.
