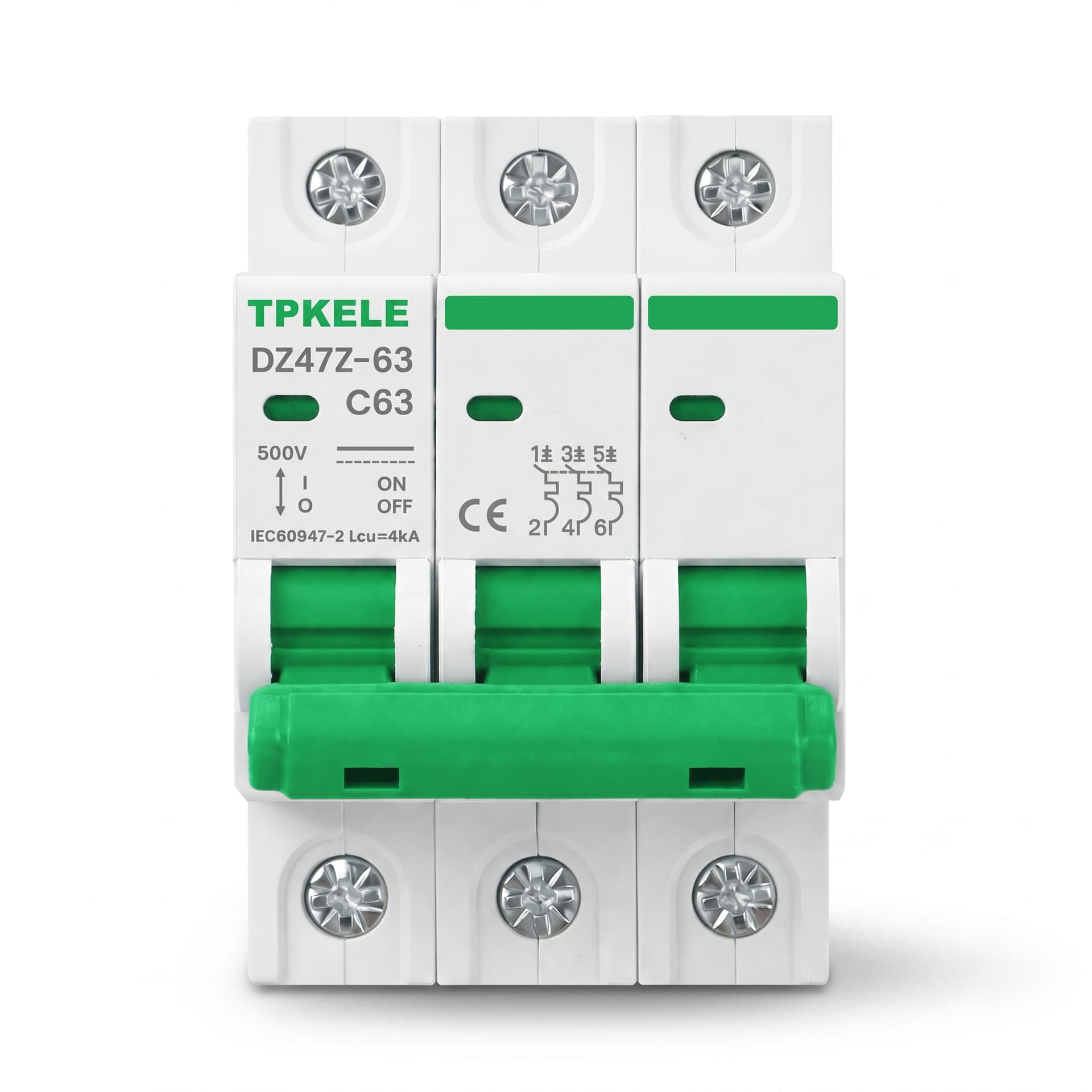

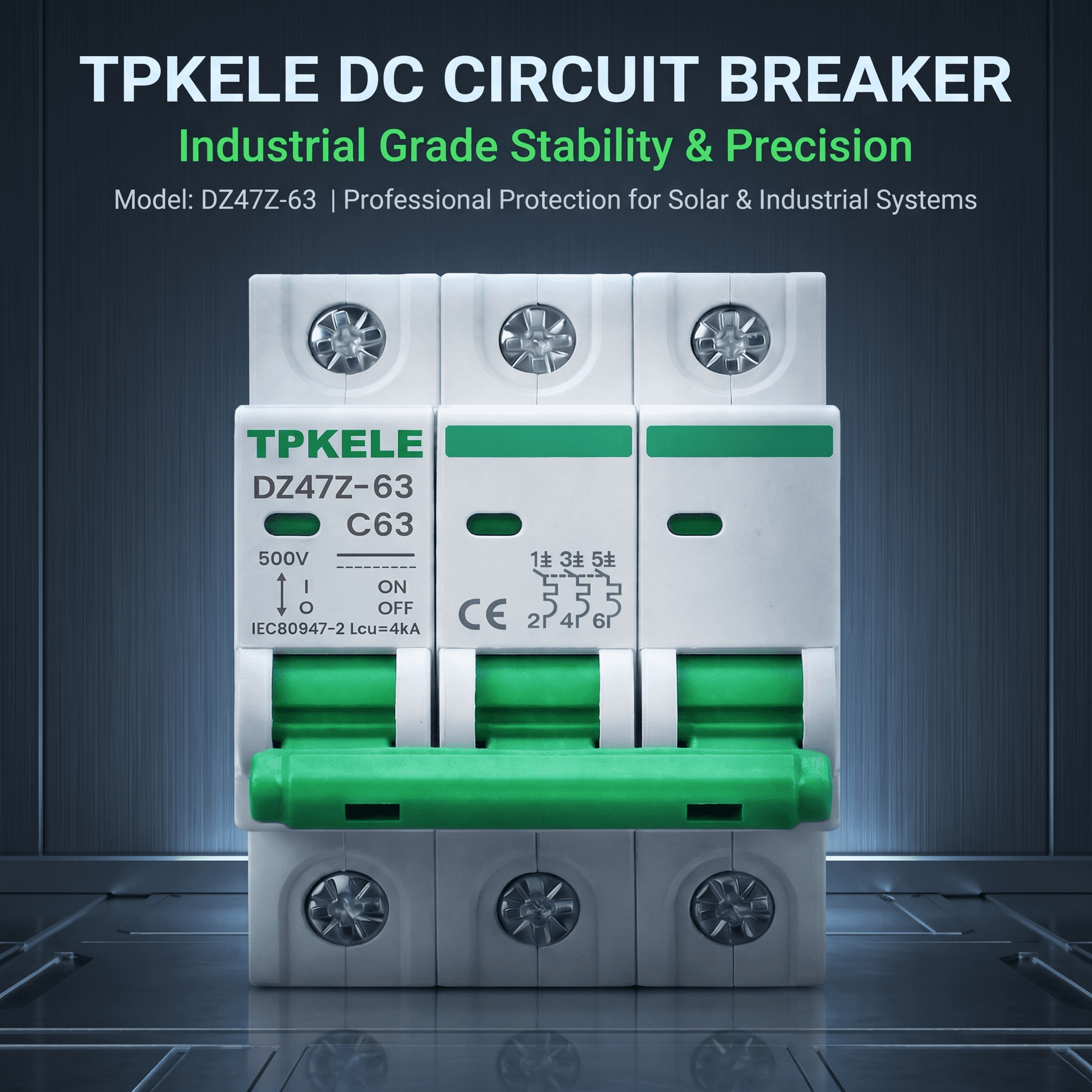

DC MCB 3P
TPKELE DC MCB 3P is a three-pole DC miniature circuit breaker, suitable for higher system voltage PV and battery DC bus protection where additional poles are connected in series.
Key Features
- 3 Pole DC
- Higher DC voltage rating
- Series-pole arc breaking
- DIN rail mount
- CE & RoHS certified – accepted in EU, UK, and global markets
Technical Specifications
| Poles | 1P / 2P / 3P / 4P |
|---|---|
| Rated Current | 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A |
| Rated Voltage | 120V / 230V / 400V AC |
| Breaking Capacity | 4.5 kA, 6 kA, 10 kA |
| Trip Curve | B, C, D |
| Housing Material | Flame-Retardant Thermoplastic |
| Mechanical Life | 20,000 operations |
| Electrical Life | 10,000 operations |
| Mounting | DIN-rail 35mm |
| Certification | CE, RoHS, IEC 60898-1 |
| Contact Material | High-Conductivity Copper Alloy |
