Voltage Protector

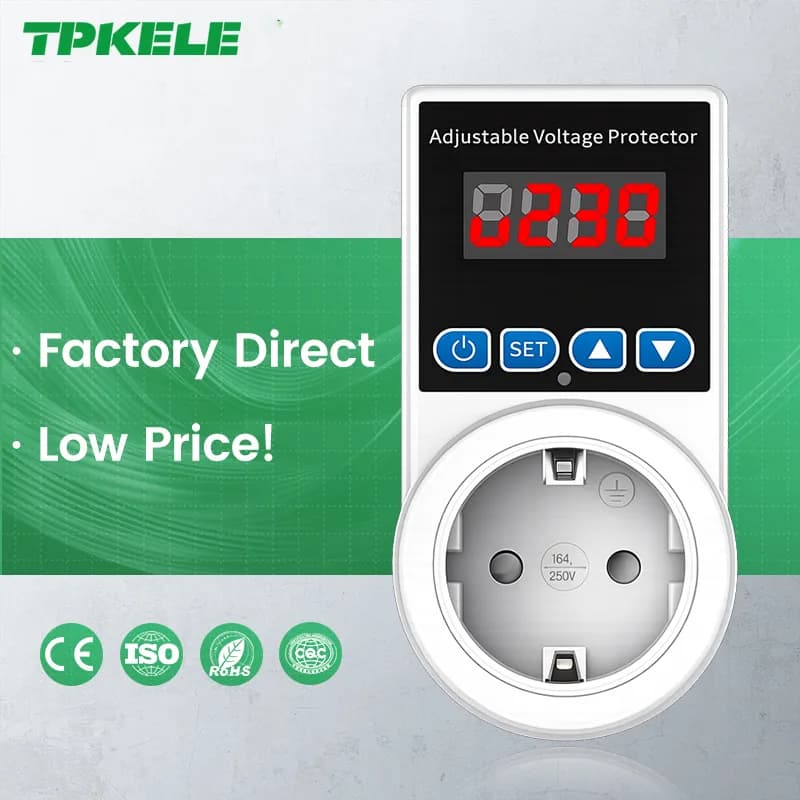

CZVA1 Digital Voltage Protector Socket
TPKELE CZVA1 is a plug-and-play adjustable digital voltage protector socket for EU (Schuko), UK and South Africa plug standards. It cuts power on over-voltage or under-voltage and automatically restores after a set delay, with a digital LED display and Power / SET / Up / Down buttons — protecting refrigerators, air conditioners, TVs and washing machines from unstable mains.
Key Features
- Plug-and-play voltage protector socket
- EU (Schuko) / UK / South Africa plug standards
- Digital LED display with Power / SET / Up / Down buttons
- Adjustable over/under voltage thresholds + voltage correction
- Auto power cutoff and restore after set delay
Need full datasheet, drawing or certificates for tender?
Typical Applications
Technical Specifications
| Product Name | Adjustable Digital Voltage Protector Socket |
|---|---|
| Compatible Plug Standards | EU (Schuko) / UK / South Africa |
| Rated Input Voltage | AC 140–300V |
| Rated Frequency | 50Hz / 60Hz |
| Max Rated Power | 2300W |
| Max Rated Current | 10(2)A / 16A Max |
| Over-Voltage Protection Range | 230V–300V (Default: 260V) |
| Over-Voltage Recovery Offset | -5V (Default: 255V) |
| Under-Voltage Protection Range | 140V–210V (Default: 175V) |
| Under-Voltage Recovery Offset | +5V (Default: 180V) |
| Recovery Delay Time | 5s–999s (Default: 10s) |
| Voltage Correction Range | -20V ~ +20V (Default: 0V) |
| Display Type | Digital LED Display |
| Control Buttons | Power / SET / Up / Down |
| Automatic Power Cutoff | Yes (On Over/Under Voltage) |
| Automatic Power Restore | Yes (After Set Delay) |
| Plug & Play Installation | Yes |
| Application | Home Appliances, Refrigerators, Air Conditioners, Televisions, Washing Machines |
| Operating Temperature | -10℃ ~ +50℃ |
Certifications & Standards
Verified to international standards for global tenders
OEM / ODM Available
Private label this Voltage Protector for your brand
Logo, color housing, packaging and certificate documentation tailored to distributor and brand-owner programs.
- Custom logo printing on housing and packaging
- Color housing variants for product line differentiation
- Private-label catalogs and datasheet customization
- Project-spec drawings, single-line diagrams and labels
- Container-load supply with export documentation
- Sample preparation within 5–10 working days
Frequently Asked Questions
When should I install a voltage protector?
Voltage protectors are recommended where mains supply is unstable or where sensitive appliances such as refrigerators, air conditioners and electronics need protection from voltage fluctuations and phase-loss events.
Does the voltage protector reset automatically?
Yes — after the mains voltage returns to a safe range, the protector reconnects the load automatically after a configurable delay (typically 5–600s).
Do you have three-phase models with phase-loss protection?
Yes, our three-phase voltage protectors detect over/under voltage on each phase, plus phase loss and phase sequence errors.
