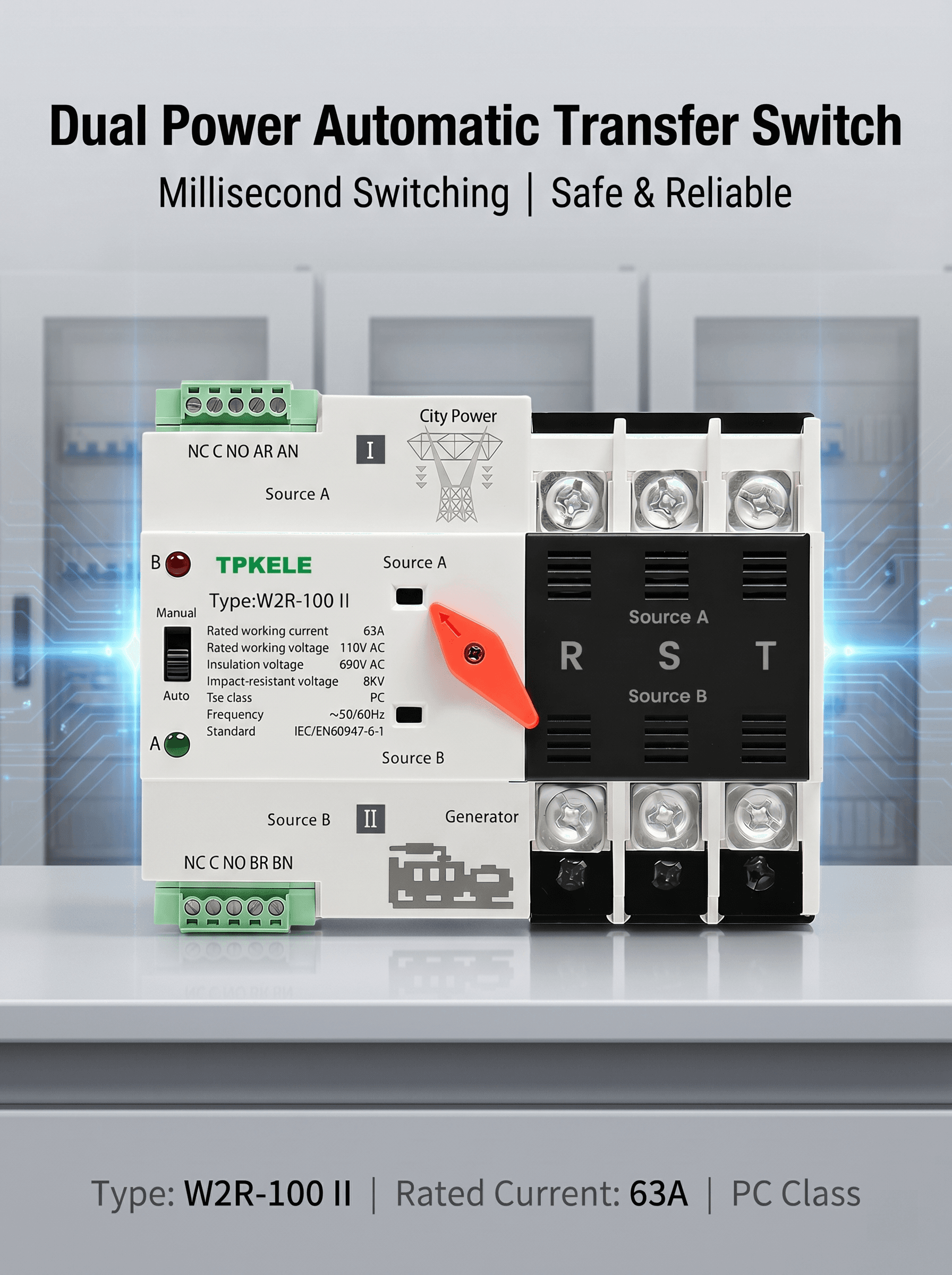

ATS
ATS
TPKELE ATS products support automatic source transfer for standby power and critical low voltage distribution systems.
Key Features
- Fast transfer response
- Compact modular structure
- Used in critical distribution systems
- Mechanical and electrical interlock for safe transfer
- Compatible with mains plus diesel generator setups
Technical Specifications
| Poles | 2P / 3P / 4P |
|---|---|
| Rated Current | 16A – 125A |
| Rated Voltage | 230V / 400V AC |
| Transfer Time | ≤ 0.4 s |
| Mechanical Life | 8,000 operations |
| Electrical Life | 2,000 operations |

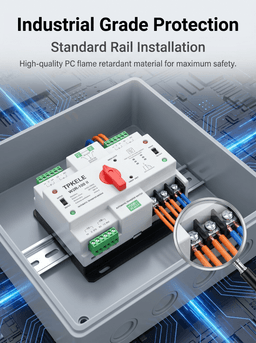

| Mounting | DIN-rail 35mm |
| Certification | CE, IEC 60947-6-1 |
