Voltage Protector
Voltage Protector

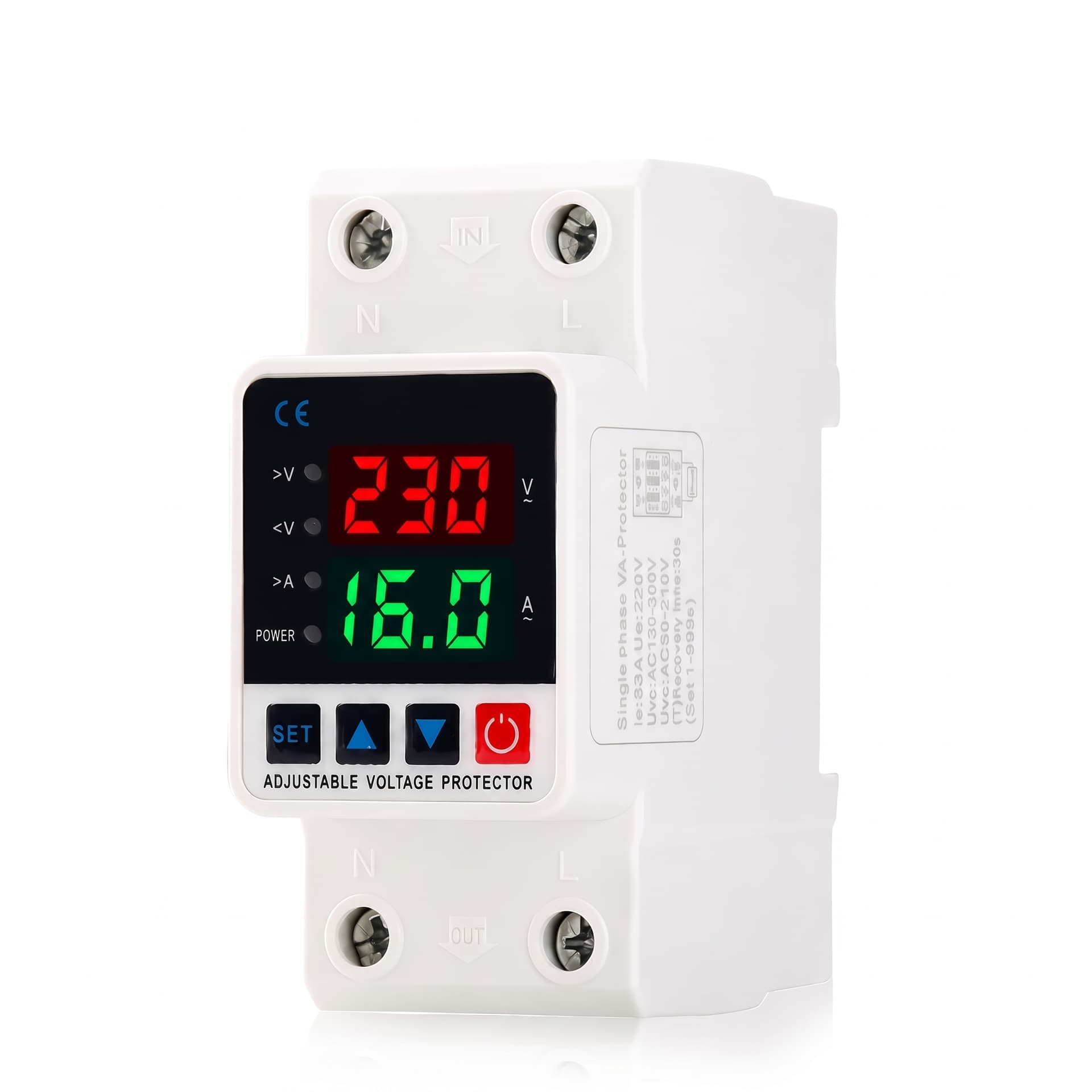

TPKELE over voltage protectors monitor incoming power and disconnect loads when voltage moves outside the safe operating range.
Key Features
- Automatic disconnect and reset
- DIN rail installation
- Adjustable model options
- Automatic disconnect on over voltage and under voltage
- Auto reconnection with adjustable delay
Technical Specifications
| Phase | Single phase / Three phase |
|---|---|
| Rated Voltage | 230V / 400V AC |
| Over Voltage Trip | Adjustable, 245V – 280V |
| Under Voltage Trip | Adjustable, 150V – 210V |
| Reconnection Delay | Adjustable, 5s – 600s |
| Response Time | < 200 ms |
| Mounting | DIN-rail 35mm |
| Certification | CE, RoHS |
